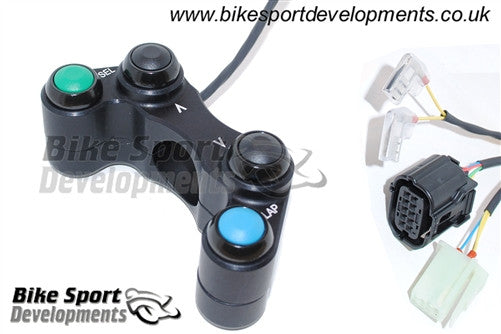

Yamaha R1 2015 onward - 4 way Shell clamp bar mount - Standard ECU - left handlebar switch assembly - Lap Up Select Down.

This switch is intended to replace the standard left hand handlebar switch and features the following controls. Full data sheet download available on next page tab.

• Select (mode) function)
• UP function
• DOWN function
• Lap - set

Note: Wiring for the clutch switch is included
The aluminium assembly has been designed ultra-slim and encompasses 3 sealed switches.

No modification of the bike wiring is necessary, this kit plugs directly into the 8 way and 4 way connector of the standard loom.

• Width at centre - 13.5mm
• Cable length - Same as the standard switch
• Coating - Black anodise
• Made in the UK

Kit comprises:

• 4 x sealed push-button switches
• Pre-wired connector to suit the standard bike wiring
• Retaining screws

Alternative 3 and 5 way left side switches are available for track bikes using the standard ECU or Kit ECU.
