Yamaha YZF R6 2017> Translogic Blip Assist Complete Kit

Regular price £437.99 GBP + VAT

Yamaha R6 2017> Blip Assist ECU. Plug & Play for `ride-by-wire' R6 models 2017 onwards.
Details

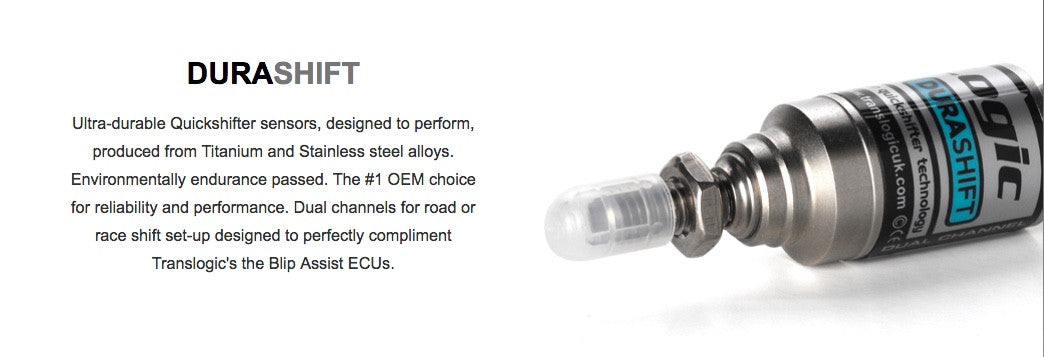

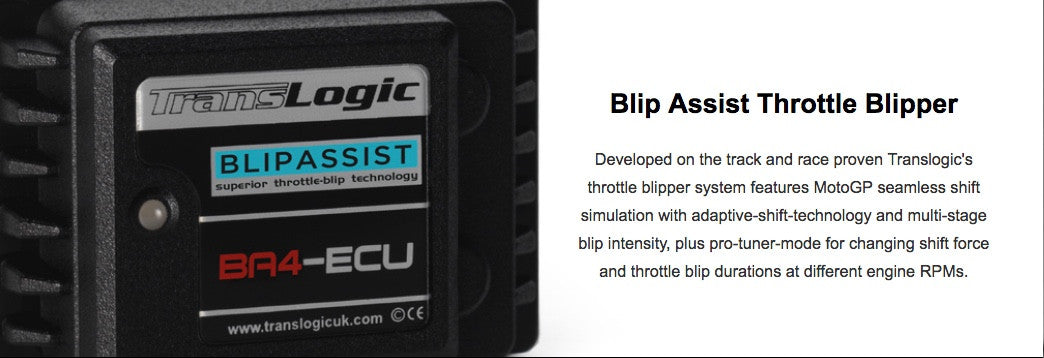

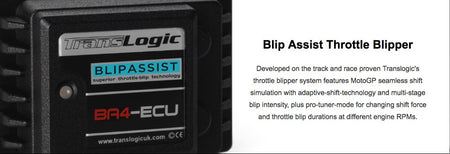

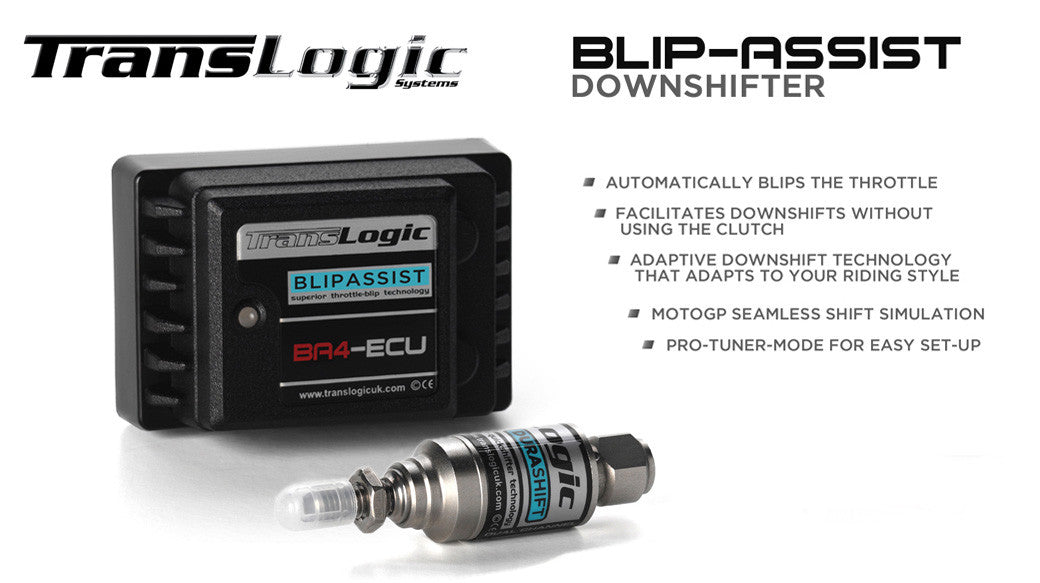

This new state-of-the-art Throttle Blipper system or Down Shifter is designed to compliment Translogic's Intellishift DCS systems and Powershift systems. The Blip Assist ECU interfaces with the engines throttle body connectors via the plug&play connectors. During down shifts either Translogic's DCS sensor or Powershifter ECU sends a signal to the Blip Assist ECU which then performs a controlled throttle blip depending on riding conditions at the time of the down shift.

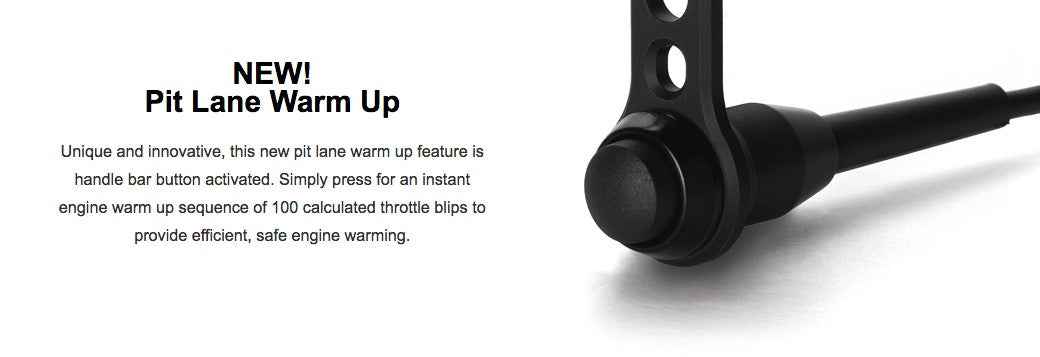

The exciting NEW pit lane warm up feature incorporated into these state-of-the-art throttle blipper systems is activated by an anodised billet aluminium handle bar mounted bracket encapsulating a single sealed tactile button featuring gold plated contacts for precise operation.

Fully adjustable and adaptive. The strength/duration of the throttle blip can be adjusted using Translogic's Pro-Tuner-Mode (No PC is necessary). The sensor trigger force can be adjusted too as well as the intensity of the blip itself in 5 different RPM bands. There are default settings within the Blip Assist ECU thanks to the hundreds of hours of real world testing carried out by Translogic Systems and it's professional partners giving you a great head start when first experiencing this new technology.

Installation

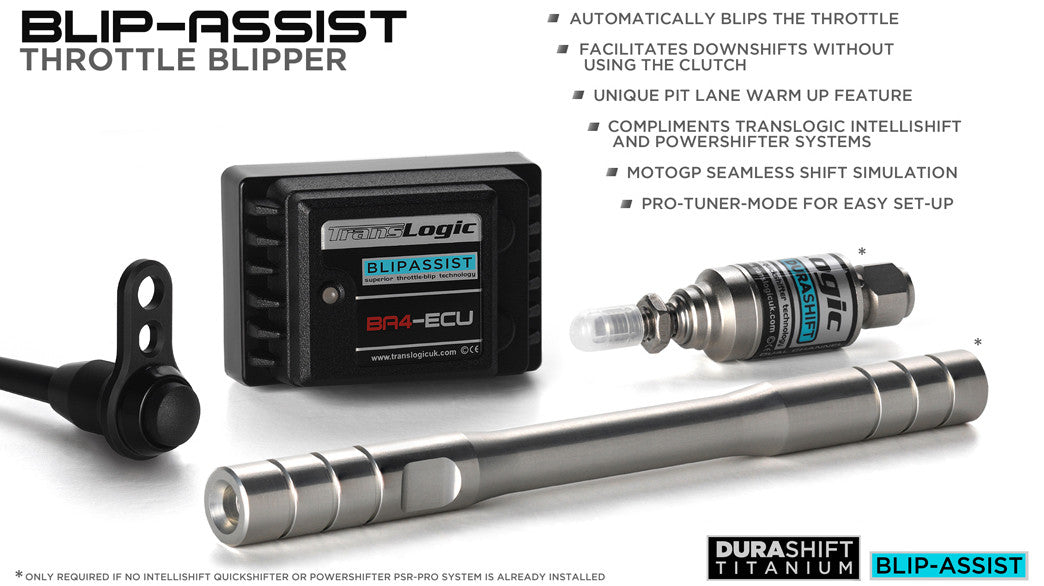

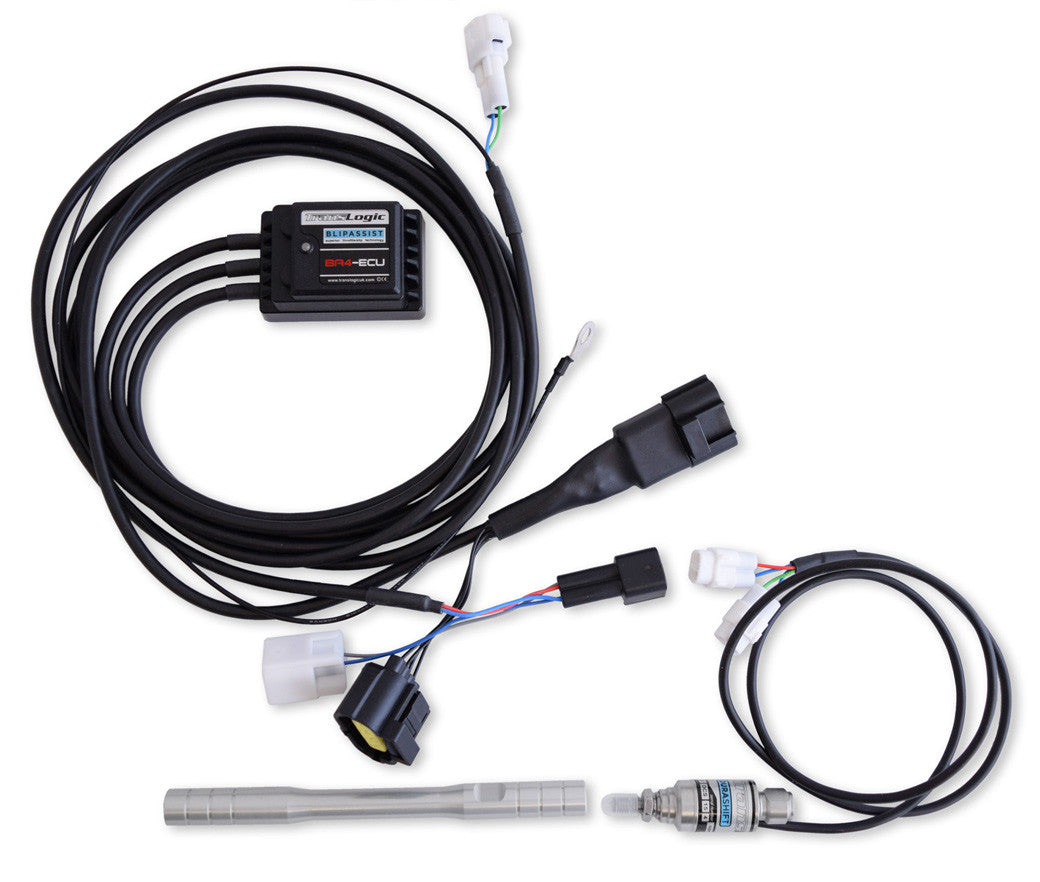

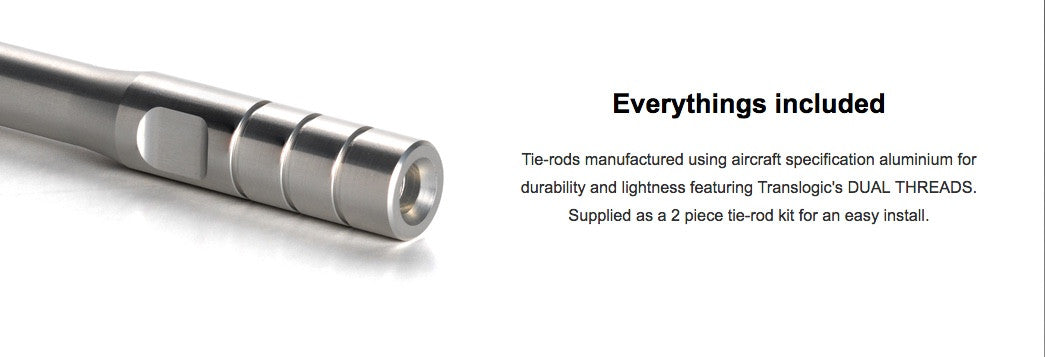

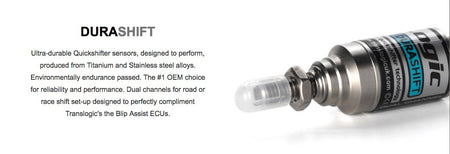

Yamaha Blip Assist for R6 models 2017 onwards. Plug&Play system. (includes ECU, DCS sensor, tie rod kit and pit lane warm up button assembly). (If your R6 has standard gear levers then you will need to add this tie-rod TLS-TR-FM-108, see above).

Once the Blip Assist ECU is installed under the riders or pillion seat, the plug & play Throttle Positional Sensor connectors are plugged in and the pit lane warm up handle bar button assembly installed it's off to the Dyno to check the default 'blip' settings and make any necessary adjustments.

Dimensions

Blip Assist ECU dimensions - 58mm X 38mm X 26mm - Weight (packaged) - 220grams

SPECIAL NOTE: Due to the technical nature of this product the Blip Assist must be installed by a trained and professional technician using a Dyno facility. Please call us to book in for fitting and set-up.
