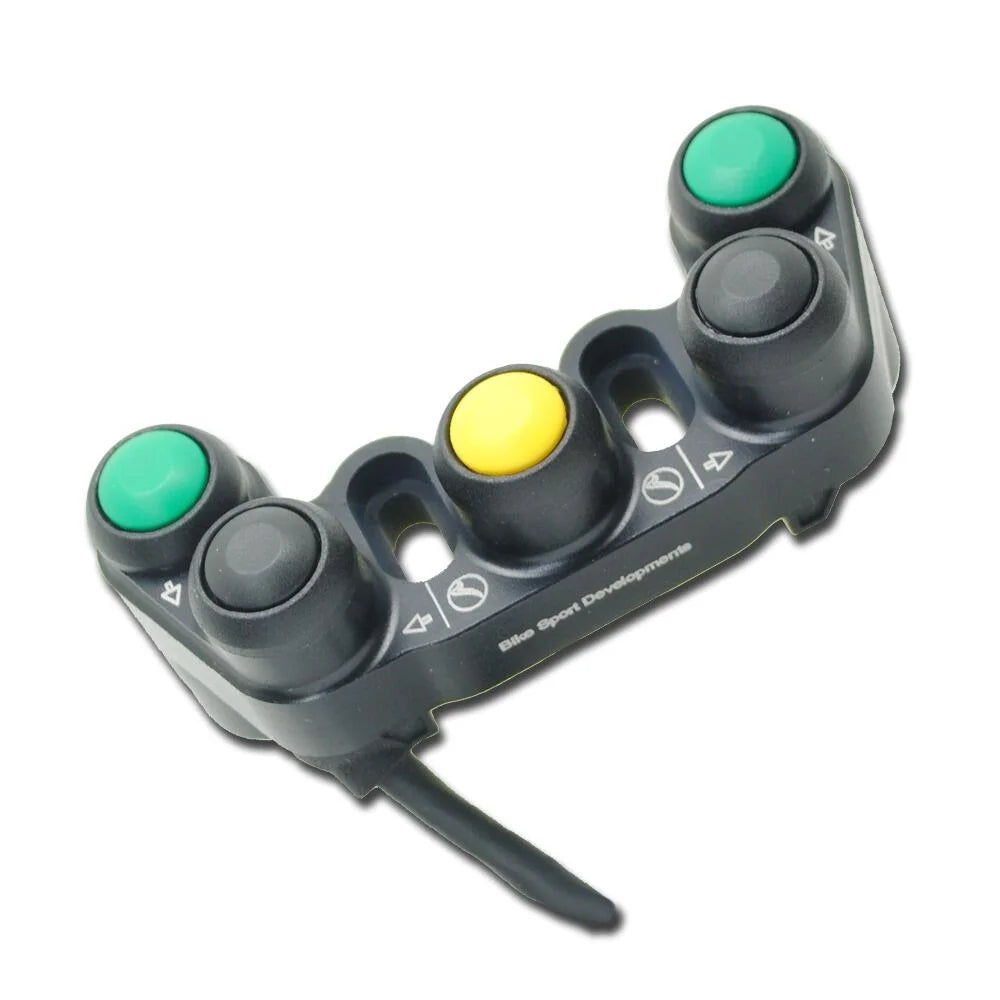

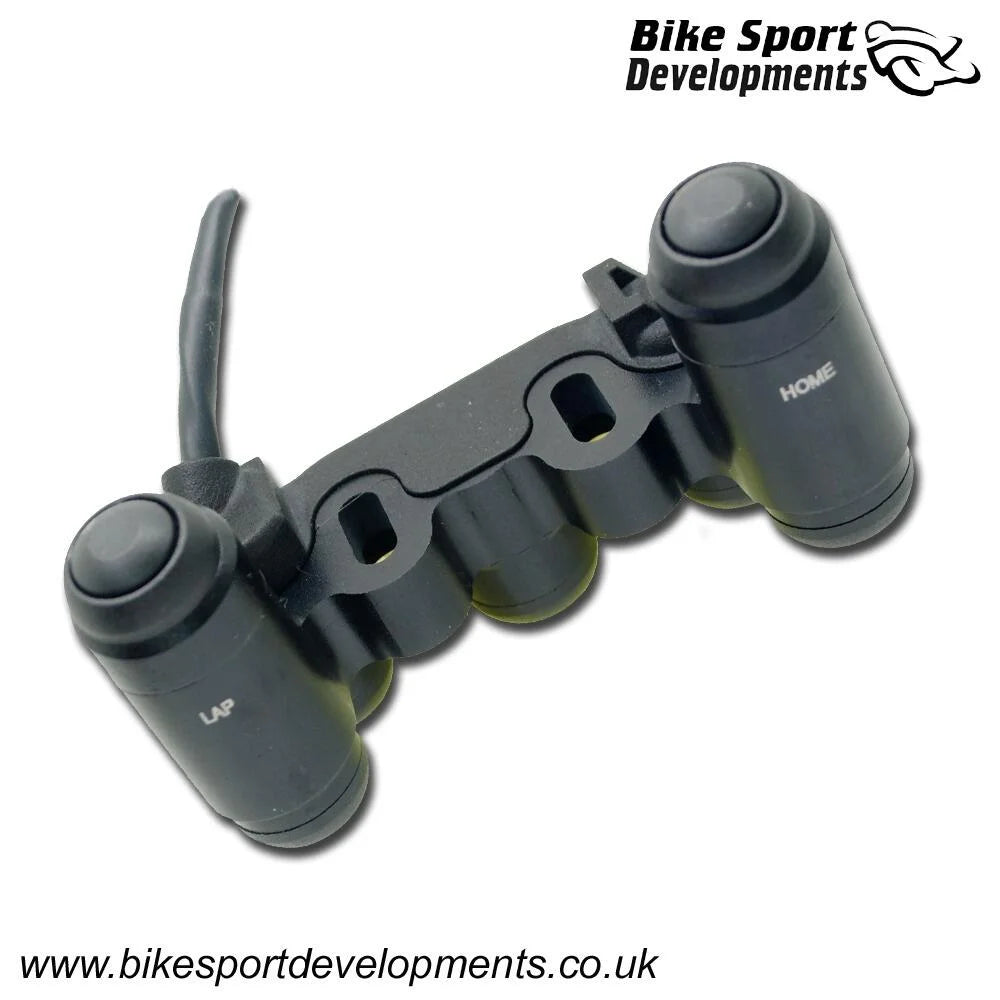

Yamaha R9 2025 onward - 7 function race switch - bar or clutch clamp mount - Multi-Function

Make : Yamaha

Model : R9

Model : 2025 onward

Part Number : BD-SW-7BC-92

Number of switch functions : 7

Position : Left side

Road or Track : Track only

Mounting type : Mounts directly onto the handlebar using our generic 22mm clamp, or direct to the clutch post

Download the product : DATASHEET

This switch is is a direct 'plug n play' replacement for the standard switch assembly, retaining all controls needed for a track bike but without the controls needed on a road bike.

Direct 'plug n play' wiring connection to the standard loom via our small interface module.

Functions :

• Up
• Left
• Select
• Right
• Down
• Lap Set
• Home

These 'Type c' switches can mount onto the clutch post or master cylinder, but for R9 applications we provide the BR-G clamp to achieve maximum position adjustment.

One clamp is supplied free with each switch, with the default clamp being the BR-G, but you are free to choose an alternative clamp at the time of ordering at no extra cost. For clutch mounting on the R9 choose clamp CL-A

We have clutch clamps for:

• BR-G   22mm generic bar clamp
• CL-A    32mm in-line bolt spacing
• CL-B    30mm offset bolt spacing - Brembo XR , GP
• CL-F    30mm in-line as found on Accosato and Hel components
• CL-K    36mm in-line spacing as found on Kawasaki
• CL-J    32mm offset bolts spacing as found on Beringer components

Unless otherwise specified we will supply the BR-G clamp for this application.

Clamps may be bought separately should you change the clutch at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar and ideally suited to bikes with aftermarket clutch parts, or thumb brakes.

Construction / Notes:

• Billet aluminium body
• IP 67 waterproof switches with gold plated contacts
• Raychem type 55 wire and DR25 sleeving
• Plug and play wiring
• Greater crash protection and electrical integrity
• May be repaired after crash damage
• Custom designs are our specialty, so feel free to ask and typically at no extra cost.
• Designed and manufactured in the UK at our workshops close to Silverstone
