Honda CBR1000RR HRC 2020> - Left & Right Race Switch Set

£695.00 GBP + VAT
Description

Honda CBR1000RR HRC 2020> - Left & Right Race Switch Set

Kit comprises

  • left side switch BD-SW-7BC-40
  • Right side brake mount switch - BD-SW-6BC-40
  • Electronic control module / bike interface
*** Rain light switch provides the switch only via 2 wires, the user must then integrate with their own rain light and the spare power supply on the HRC wiring.
These left and right switch assemblies are designed for use on race/track bikes fitted with the HRC kit. For bikes with standard road bike ECU and wiring systems please see our other products.

All are 100% 'plug n play' with the HRC wiring to provide the following functions, all of which tie in with HRC manual functions.

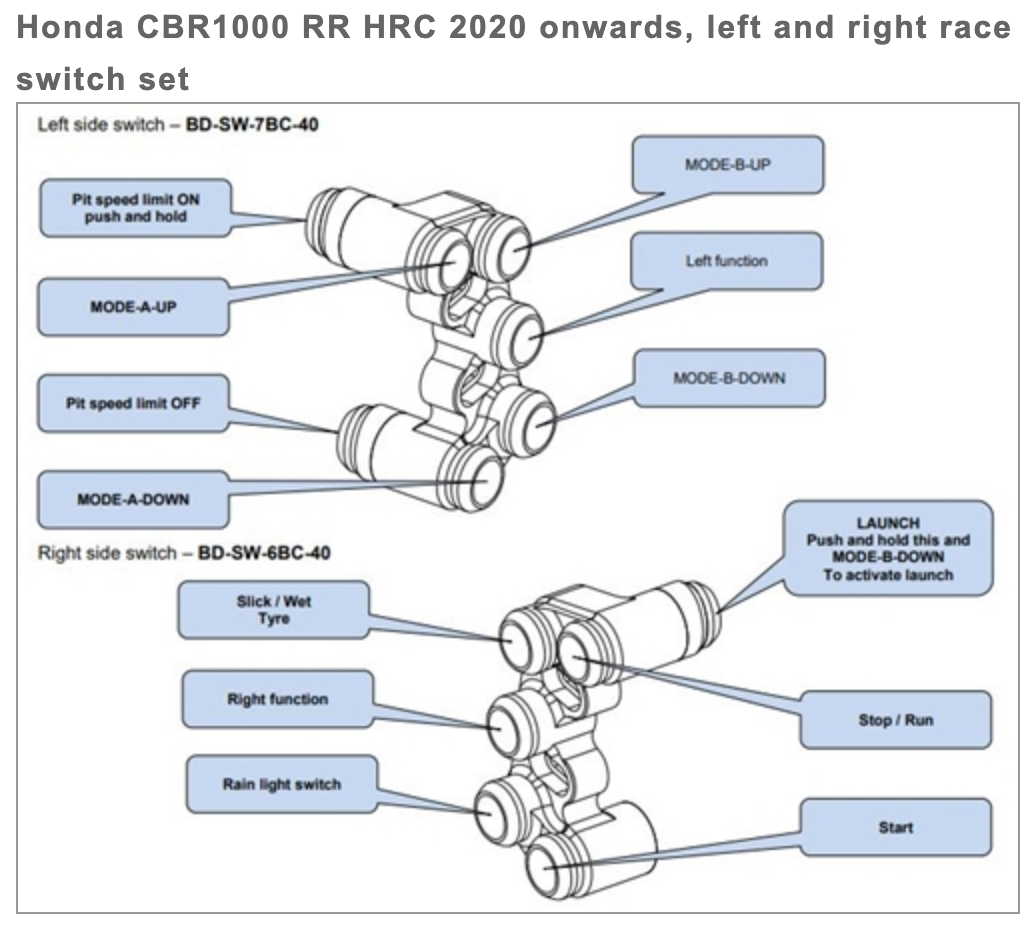

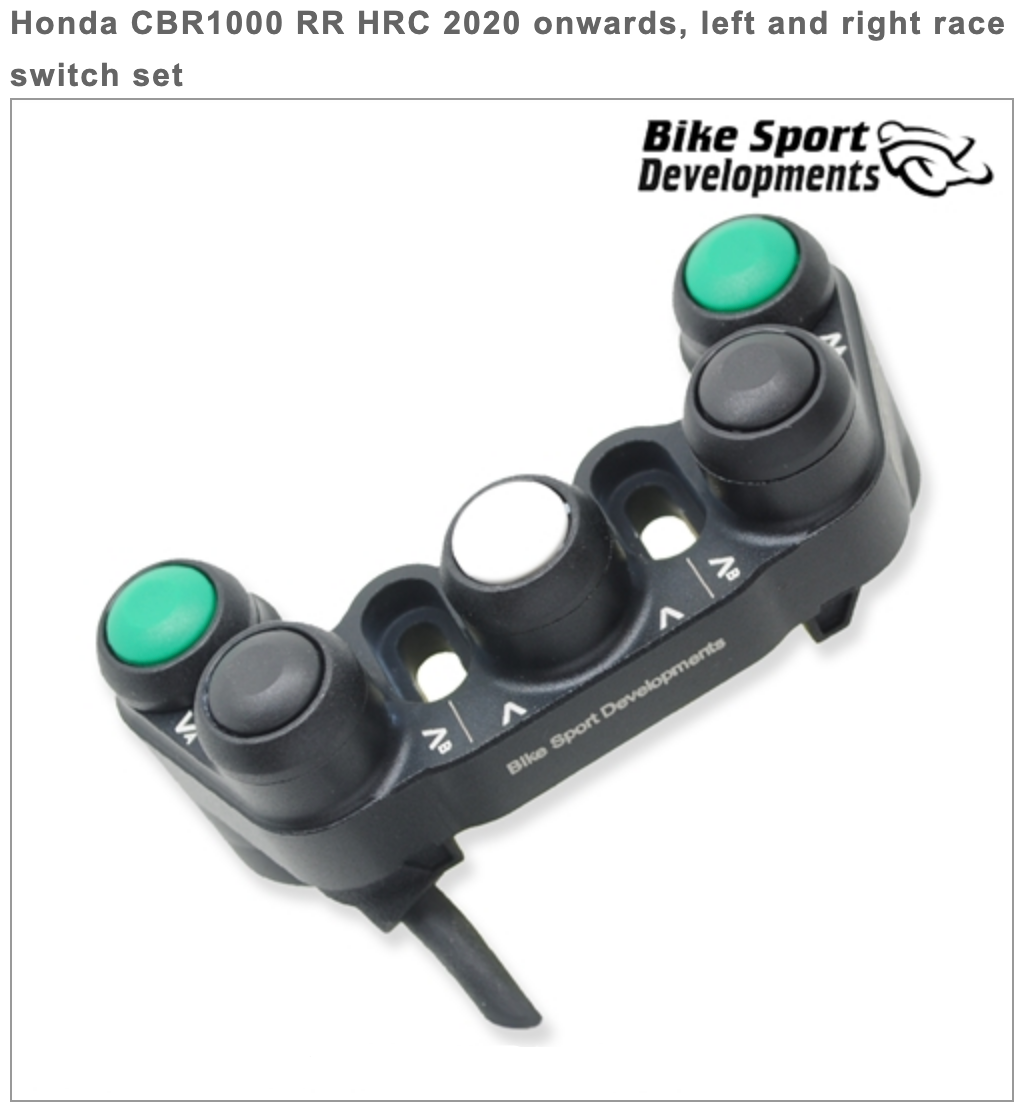

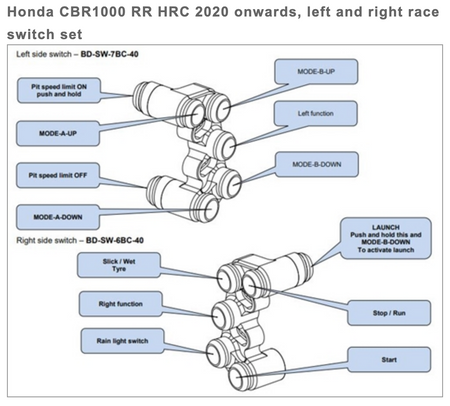

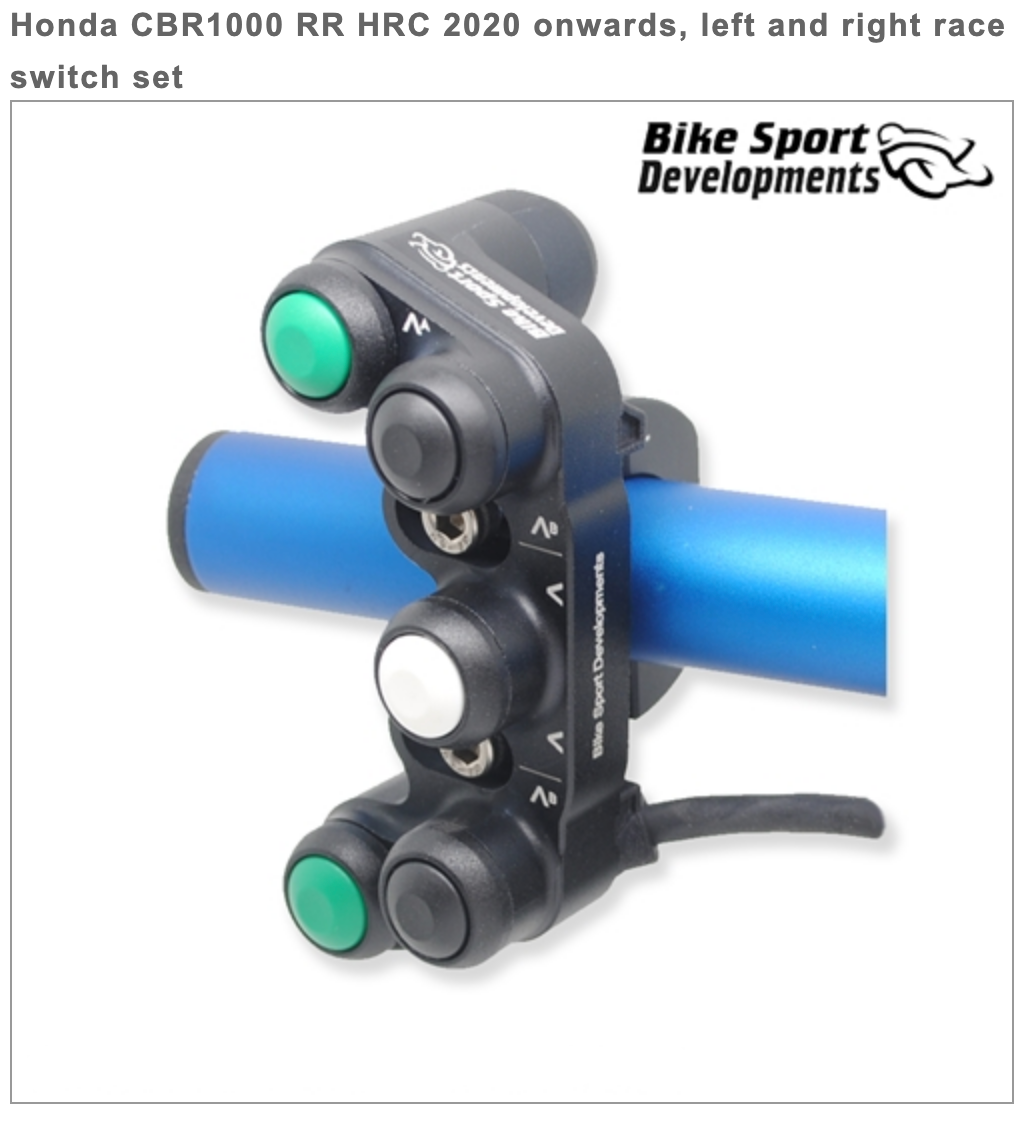

Left side switch assembly

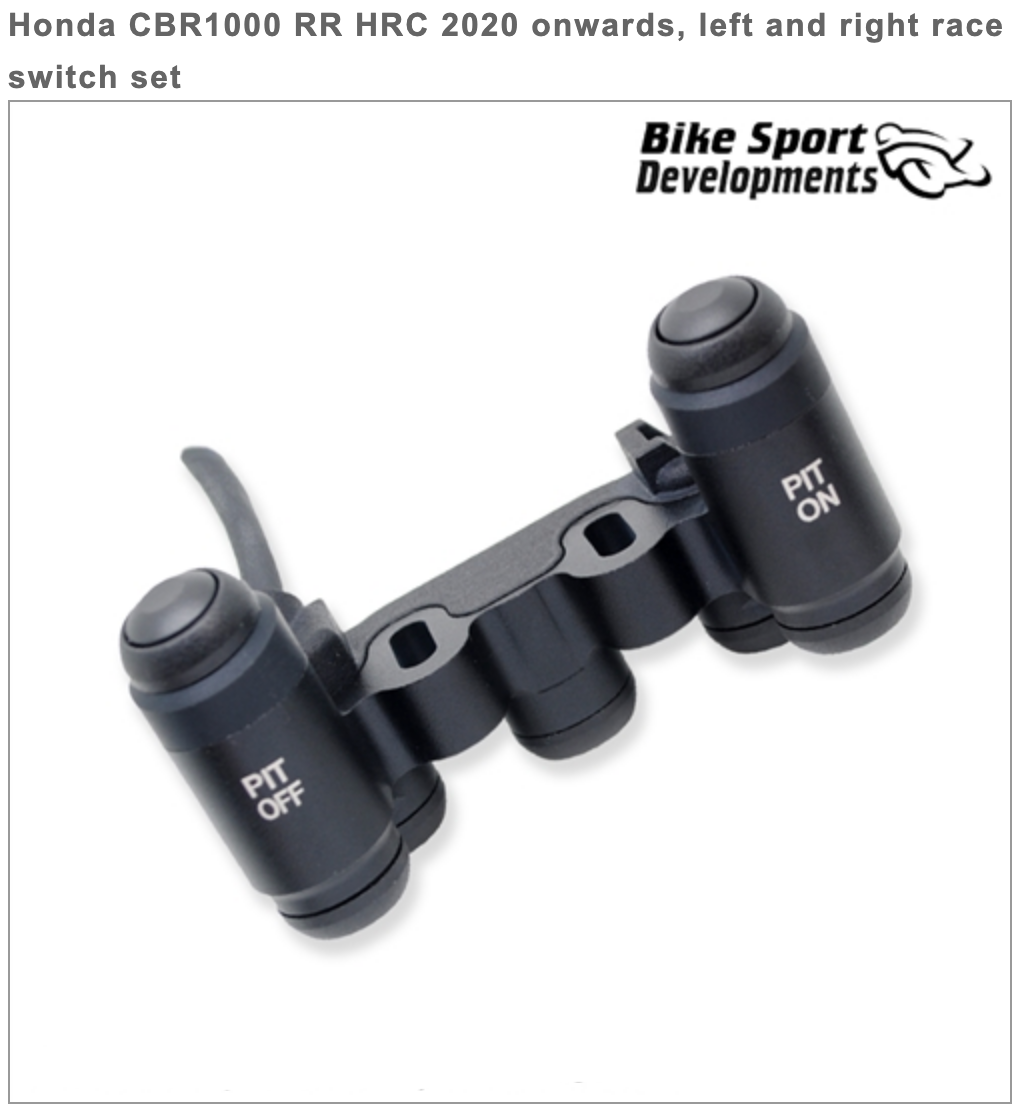

  • Pit speed limiter OFF
  • Mode A - Up
  • Mode A - Down
  • Mode B - Up
  • Mode B - Down
  • Left navigate - Function

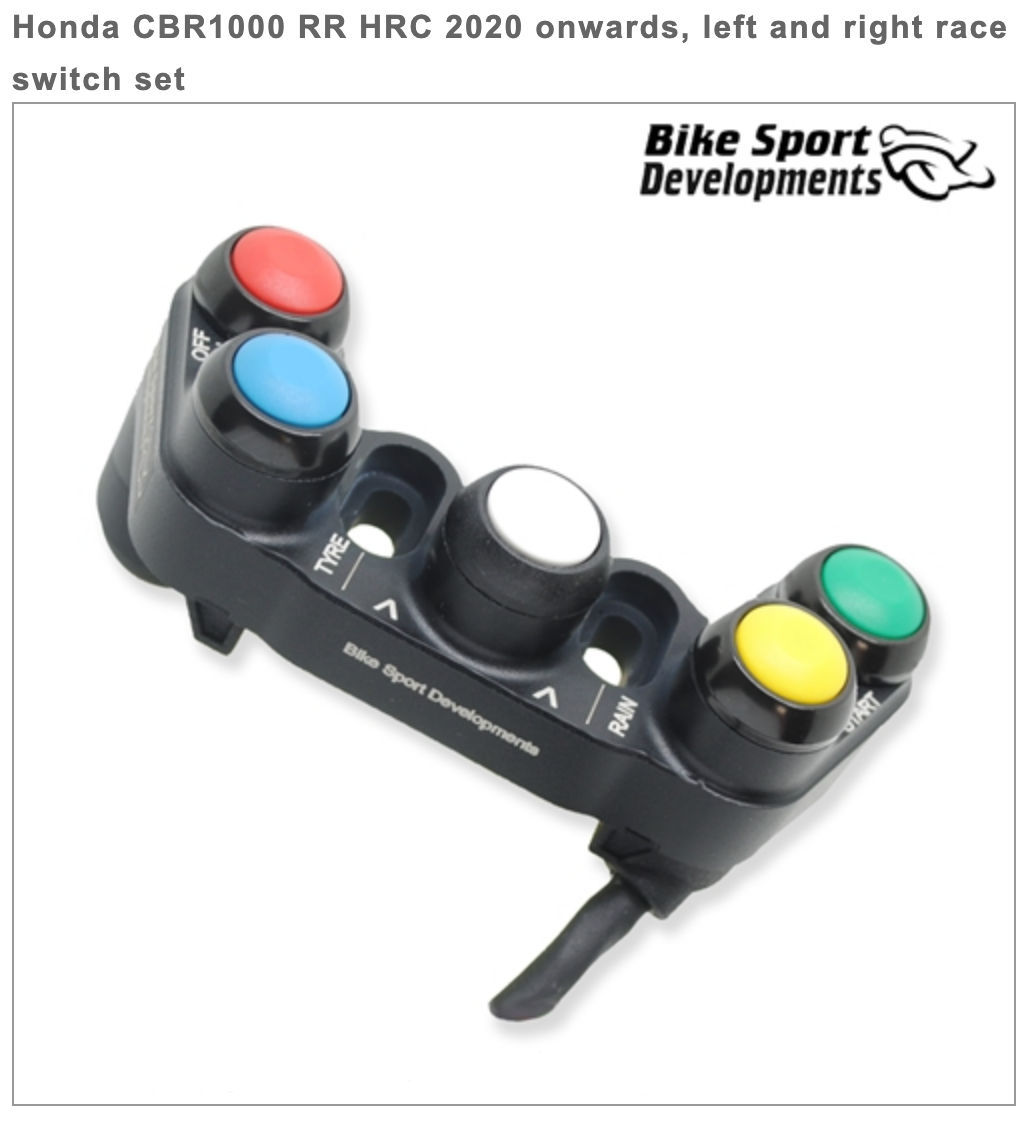

Right side switch assembly

  • Right navigate - Function
  • Slick / Wet tyre
  • Launch
  • Stop /Run
  • Start
  • Rain light ***

*** Rain light switch provides the switch only via 2 wires, the user must then integrate with their own rain light and the spare power supply on the HRC wiring.

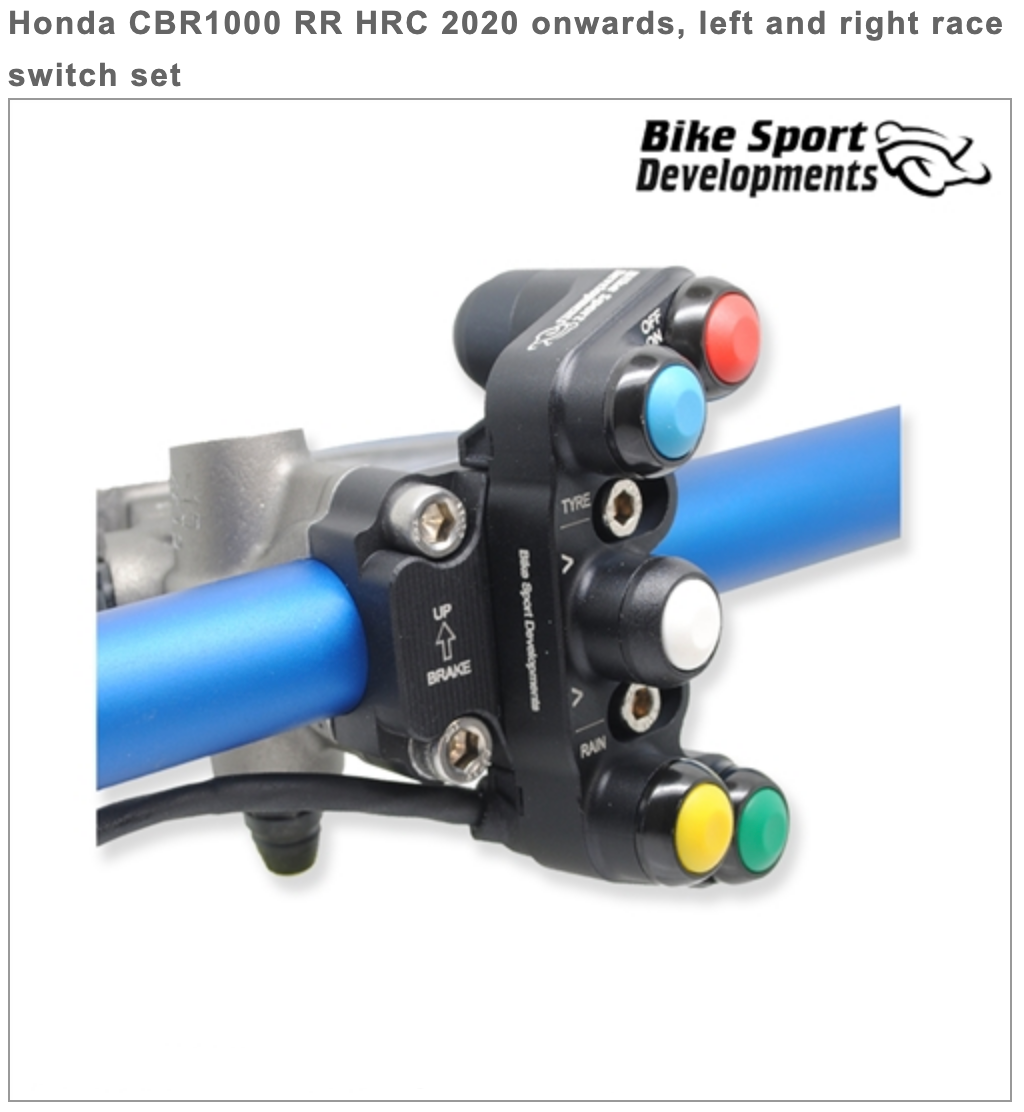

Type 'C' switches mount directly onto the brake pump body using the two original clamp screws and a new dedicated clamp.

The clamp is supplied free with each switch, with the default clamp matching the bolt pattern of the standard brake pump (master cylinder), but you are free to choose an alternative clamp at the time of ordering at no extra cost.

We have clamps for:
  • BR-A 32mm in-line bolt spacing - Standard
  • BR-B 30mm offset bolt spacing
  • BR-N 32mm in-line with a left offset for short brake levers typically Brembo RC , RCS
  • BR-F 30mm in-line as found on Accosato brake parts
  • BR-G Generic clamp for any 21.8 > 22.2 mm handlebar (does not mount on the brake pump
  • BR-J 32mm offset bolt spacing - Beringer
Unless otherwise specified we will supply the BR-A clamp for this application.

Clamps may be bought separately should you change this part at a future time, there is no need to replace the switch assembly

Perfect for saving space on the handlebar yet retaining left / right adjustment via slotted bolt holes.

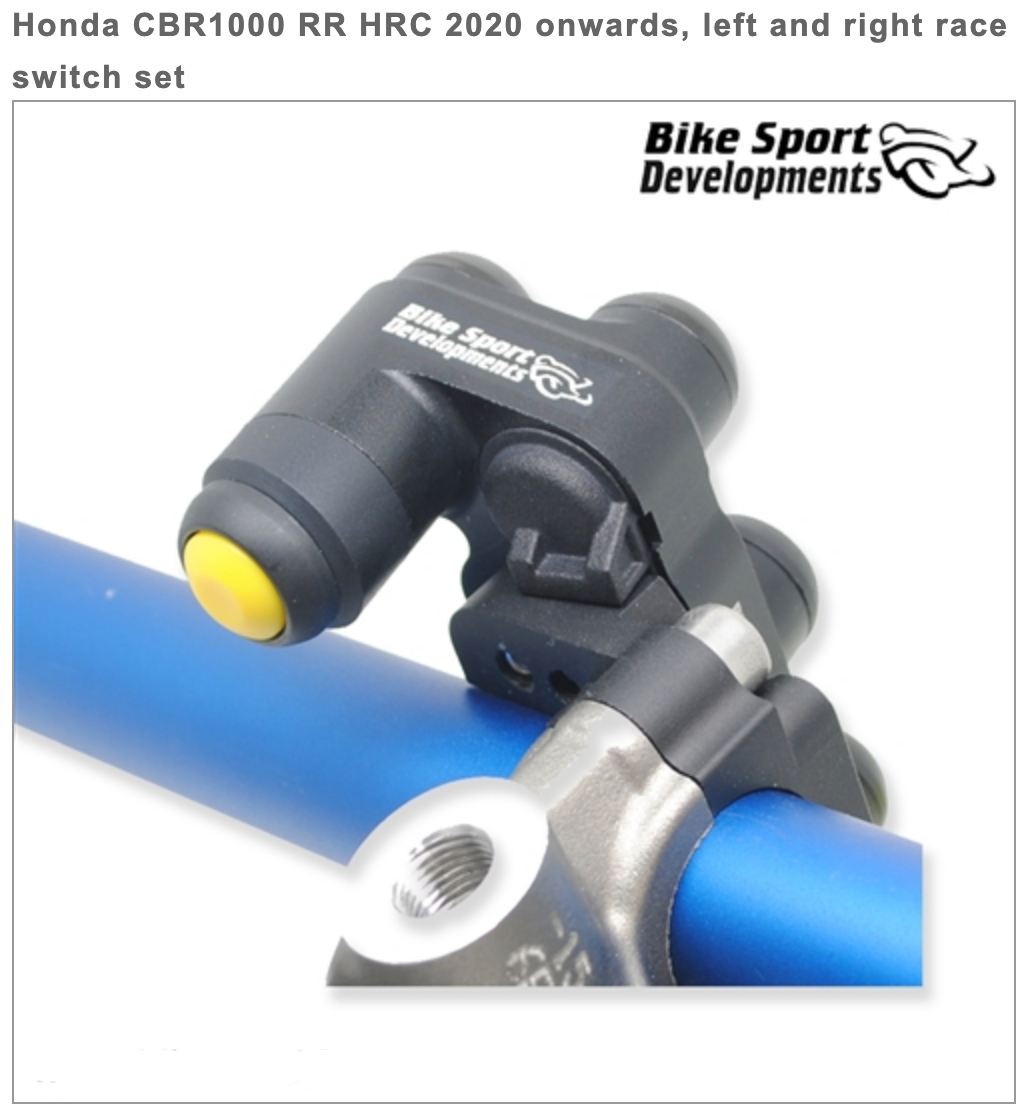

The clutch side switch uses our generic 32mm handlebar clamp BR-G

Both the left and right switches are connected to the bike via our dedicated interface module. This is located under the tank cover near the ECU.

Switches and clamps may be bought separately for replacement due to crash damage.
