Ducati 1199R SL 1299 - 3 way Shell Clamp bar mount - Race Bike Handlebar Switch Assembly - Stop/Run Start Lap Set

£205.00 GBP + VAT
Description

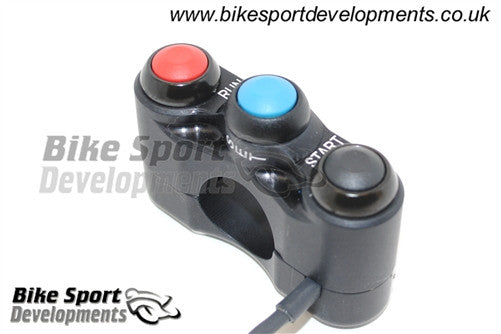

3 way Stop/Run switch assembly for Ducati Panigale 1299, 1199R (2015 on), Superleggera race or road bikes.

To be used with switch assembly BD-SW-5B-05
This switch is designed only for use with the on bikes where the user already has the left side 5 way switch set BD-SW-5B-05.
The aluminium assembly has been designed ultra-slim and encompasses these waterproof switches:
  • RED latching (Push On , Push OFF) for stop and run
  • Blue momentary to replicate the left side flasher function for Lap SET
  • Black momentary for engine starter
No modification of the bike wiring is necessary, this kit plugs directly into the 4 way connector of the standard loom, and also the wiring of the left side 5 way switch
BD-SW-5B-05.

Rugged machined aluminium construction with fully waterproof switches provide greater crash protection as well as electrical integrity.
  • Width - 20.5mm
  • Width at centre - 13.5mm
  • Cable length 380mm
  • Coating - Black anodise
  • Made in the UK
Kit comprises:
  • Sealed switch assembly
  • Pre-wired connector to suit the standard bike wiring
  • retaining screws
